Oil-free centrifugal compressor platforms

Built around the duty point.

Magnetic-bearing centrifugal refrigerant compressors for OEM-developed data-center chillers and thermal systems.

The compressor platform is one part of the system. Chiller architecture, refrigerant circuit and site performance remain project-engineered.

Discuss an OEM Application Explore compressor families

T Series oil-free magnetic-bearing centrifugal refrigerant compressor — T Series AI-enhanced catalog visualData-center-oriented OEM starting point

3Compressor platforms

11Published compressor models

10–100%Catalog capacity regulation

2 ACatalog starting-current field

From assembly to validation

Product pages backed by visible engineering context.

The supplied catalog includes open-machine bench work and full-system test infrastructure. These images show engineering context—not a customer deployment or independent certification.

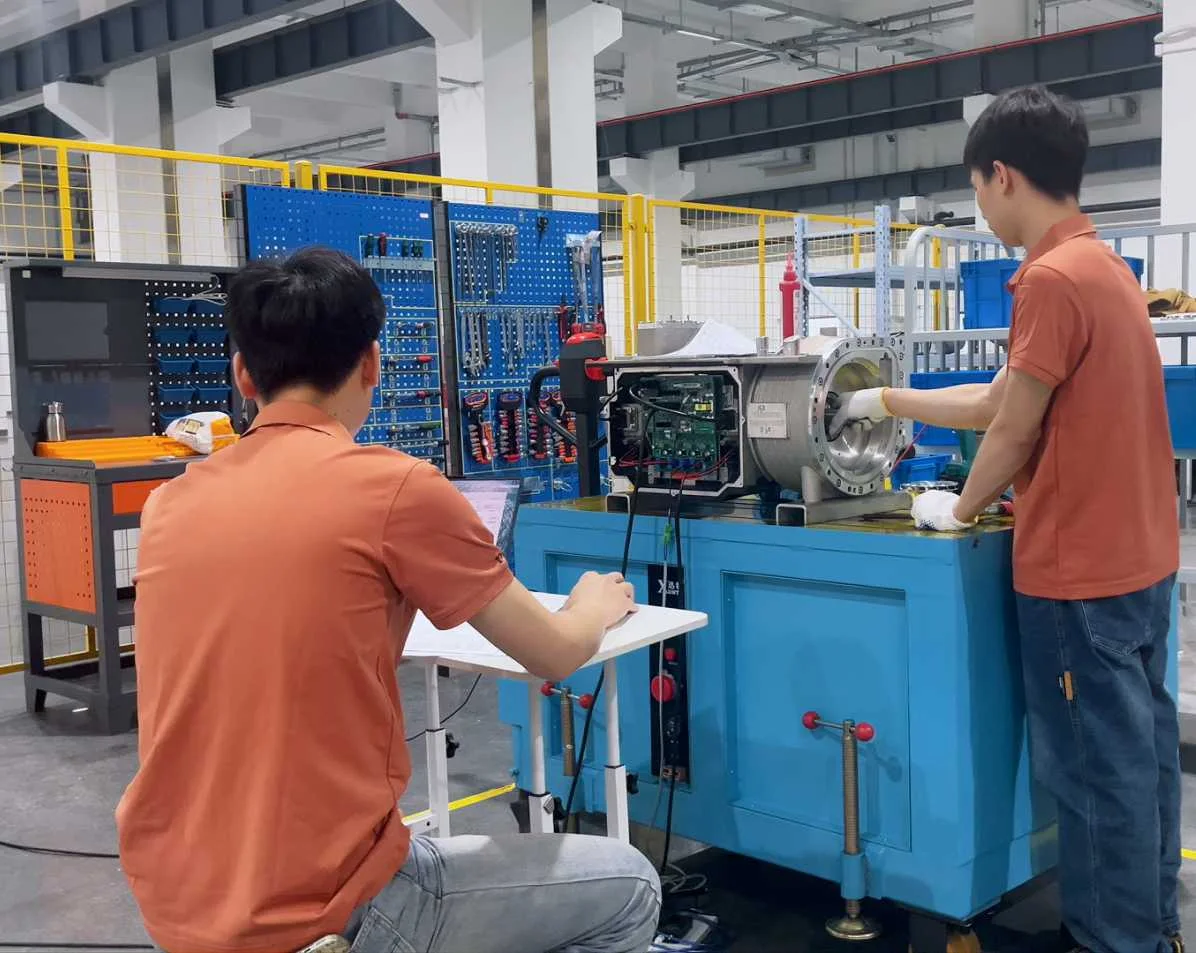

Technicians working beside an open compressor on an engineering bench — Assembly contextOpen-machine engineering benchSupplier-provided catalog image; personnel identity and model are not asserted.

Large compressor system performance test equipment shown in the supplied catalog — Performance infrastructure300 / 600 RT platform shown in catalogSupplier-provided catalog image; not a customer site or independently verified performance record.

What to request next

Controlled project documents.

01: Assembly and outline drawing
02: Connection and interface schedule
03: Installation and service requirements
04: Applicable test plan and record

Review the document path

Data-center chiller development

Component-level engineering for a complete cooling system.

Selection begins with capacity, evaporating and condensing conditions, refrigerant, load profile, electrical supply and control requirements—not nominal tonnage alone.

Review the system boundary

01Data-hall loadProfile, redundancy, response
02Chiller architectureAir- or water-cooled system
03Operating envelopeEvaporating and condensing range
04Compressor platformCompressor, drive, controls

Compressor families

Three envelopes. One selection process.

Each platform is presented with its documented scope. Project selection requires model-level performance data at the requested operating conditions.

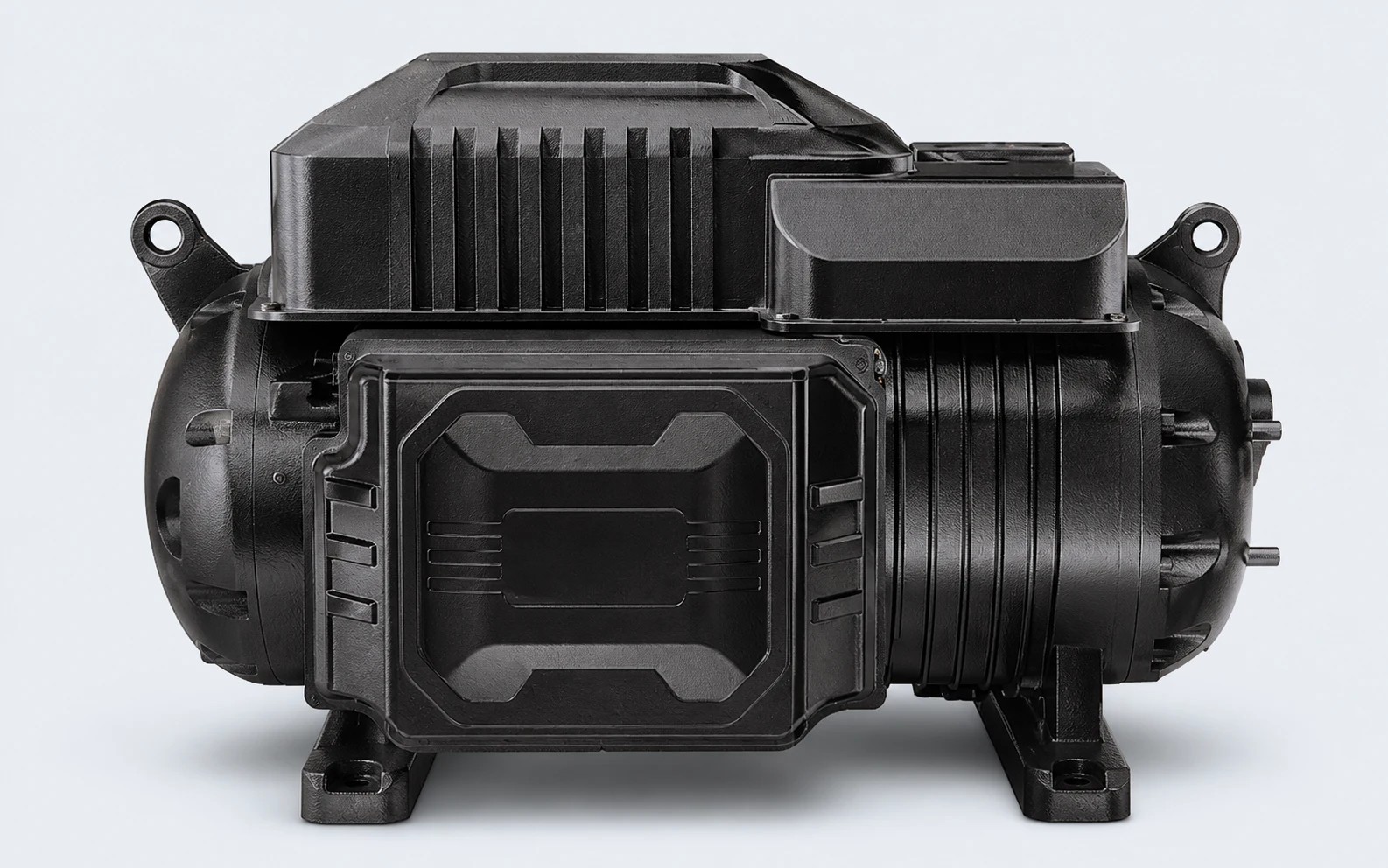

S Series oil-free magnetic-bearing centrifugal refrigerant compressor

AI-enhanced catalog visual

Standard pressure-ratio platform

S Series

A two-stage, integrated compressor family for OEM chiller development across the catalog-stated 125–300 RT range.

125–300 RTCatalog range
10–100%Capacity regulation
6 modelsPlatform coverage

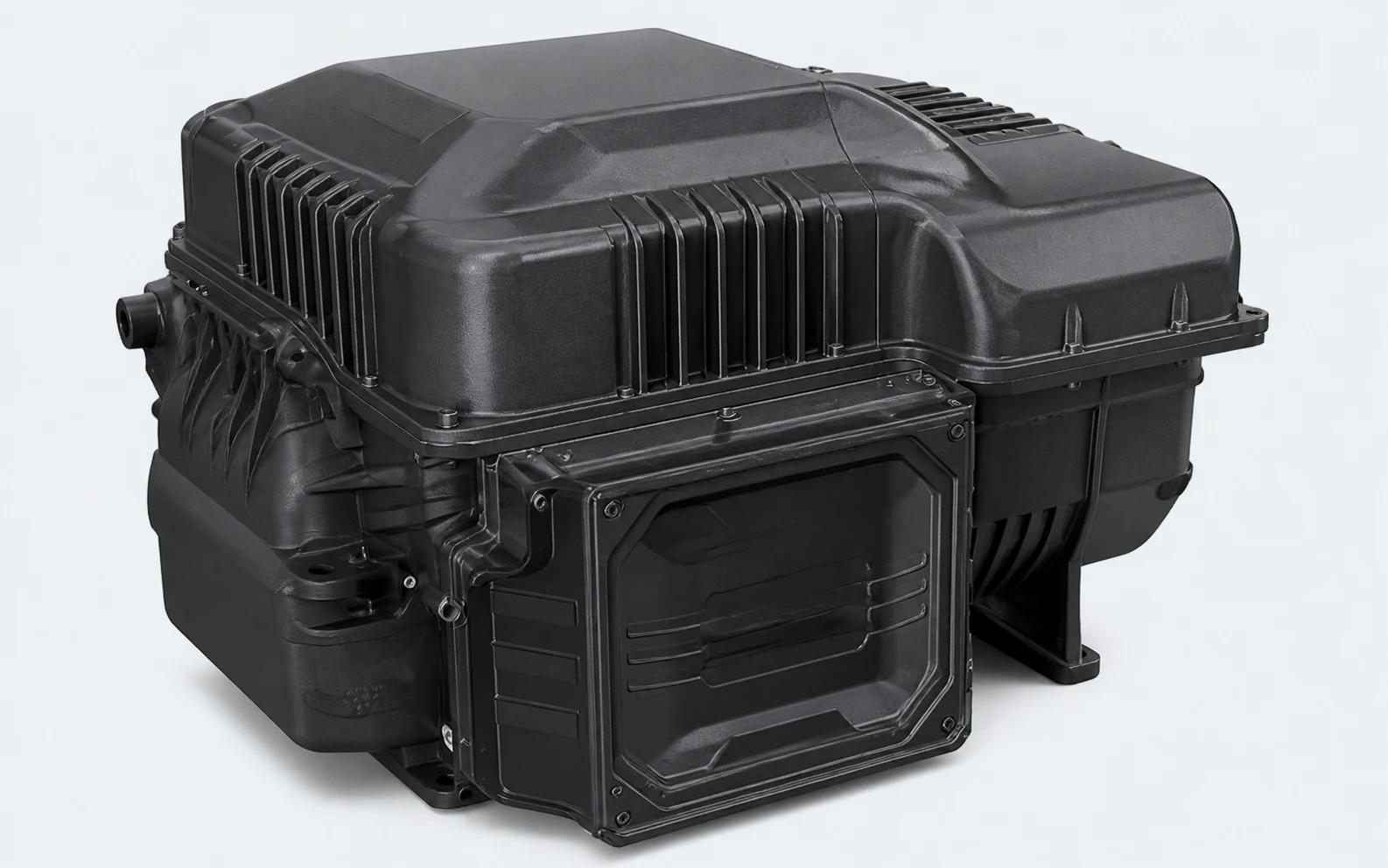

T Series magnetic-bearing centrifugal refrigerant compressor

AI-enhanced catalog visual

High evaporating-temperature platform

T Series

A four-model, two-stage family organised around high evaporating-temperature applications and OEM-designed refrigerant flow.

80–115 kWRated power field
Up to 38,000 rpmCatalog maximum speed
4 modelsPlatform coverage

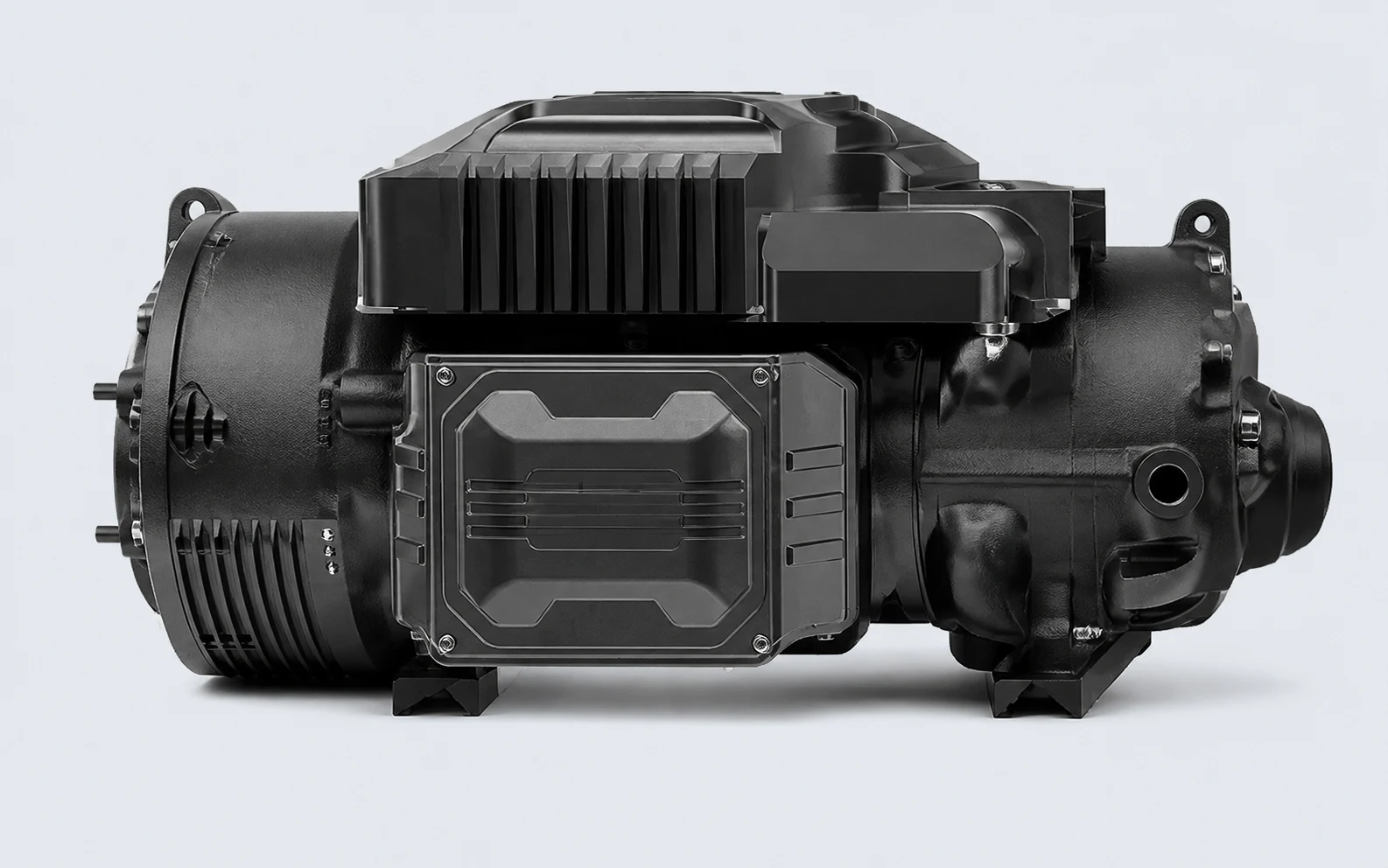

YMC105H high-lift magnetic-bearing centrifugal refrigerant compressor

AI-enhanced catalog visual

High-lift platform

H Series

A symmetric two-stage compressor architecture for applications that require an extended lift envelope.

105 RTCatalog capacity
38,000Maximum rpm
180 kgCatalog mass

Compare all products

BMCCIntegrated control

Magnetic bearing

Aerodynamic stage

Drive & control

Control architecture

Coordinate bearing, compressor and drive control.

The catalog describes an integrated BMCC approach connecting magnetic-bearing control, compressor control and variable-frequency drive control around one platform architecture.

Contactless magnetic-bearing rotor support
Integrated guide-vane and speed regulation
Model-specific drive and communication interfaces

Explore the technology stack

Validation context

Ask for the data behind the selection.

Brochure images show component and full-machine test capabilities. A project review should identify the applicable map, conditions, revision and requested evidence.

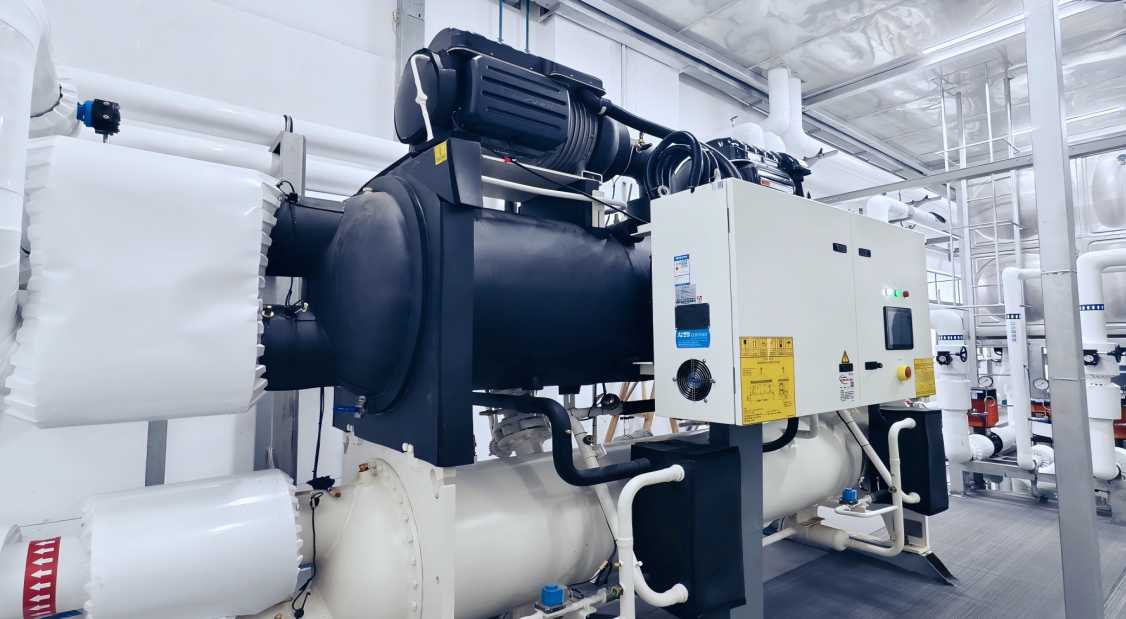

Compressor system on a 450 RT test rig shown in the supplied compressor brochure — Test infrastructure450 RT rig shown in brochure

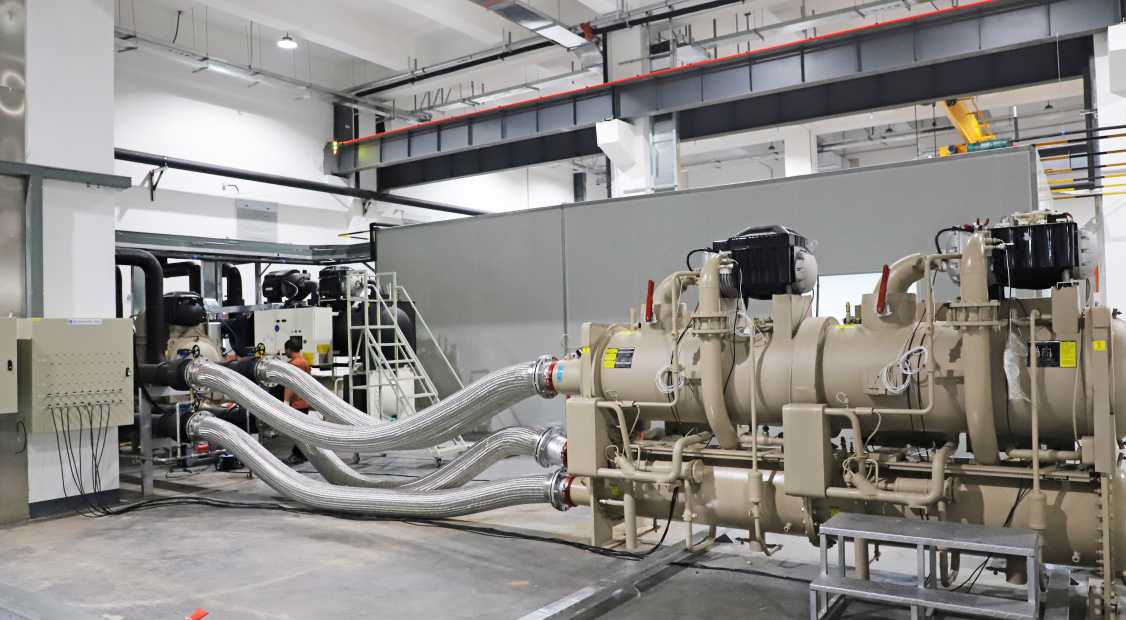

Large compressor test equipment shown in the supplied compressor brochure — Test infrastructure300 / 600 RT rig shown in brochure

01Define the duty point

Conditions, refrigerant, voltage and load profile.

02Identify the document

Model, map, revision and stated test basis.

03Review the boundary

Compressor data versus complete-system performance.

Review testing context

Published standards

Where these terms are defined

Catalog fields on this page are supplied values. The standards below define how they are rated and coded. They are references, not a third-party rating of this equipment.

Capacity and efficiency

ANSI/AHRI 550/590 (I-P)

The rating method behind chiller capacity and efficiency figures, including the integrated and non-standard part-load values (IPLV, NPLV).

Open at AHRI

Enclosure protection

IEC 60529

The IP code behind enclosure ratings, with the tests that verify each digit and a scope limited to electrical equipment up to 72.5 kV.

Open at the IEC

OEM application brief

Start with six engineering inputs.

Capacity, refrigerant, evaporating range, condensing range, electrical supply and control interface.

Discuss an OEM Application
